CC0440 Cam Latches - Flexi-System
fixed grip - finger handle, material: Polyamide
Alternative products you may wish to consider
£ 3.31 per unit (click for quantity discounts)
£ 3.93 per unit (click for quantity discounts)
£ 5.32 per unit (click for quantity discounts)
£ 2.51 per unit (click for quantity discounts)
£ 3.17 per unit (click for quantity discounts)

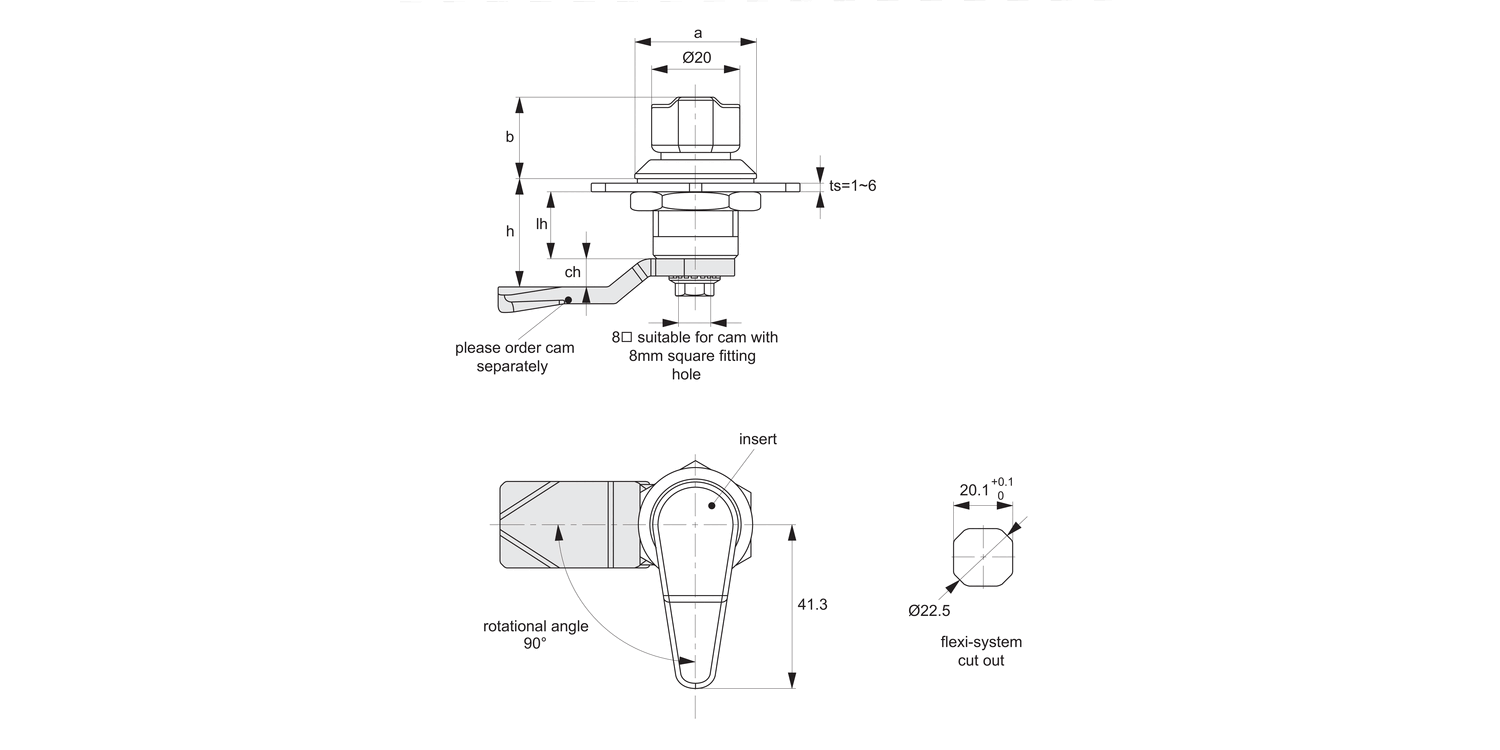

Type
a
b
lh
| Price & Availability | Article | Type | a | b | lh | ||||||||||||||||||
| CC0440.M0318 | One Zinc | 28 | 18 | 18 | |||||||||||||||||||
£ 3.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type One Zinc a 28 b 18 lh 18 | |||||||||||||||||||||||
| CC0440.M0328 | One Zinc | 28 | 18 | 28 | |||||||||||||||||||
£ 3.93 per unit (click for quantity discounts) Ready to despatch 43 Need more? Please call us.
Type One Zinc a 28 b 18 lh 28 | |||||||||||||||||||||||
| CC0440.M0362 | One Zinc | 28 | 18 | 62 | |||||||||||||||||||
£ 5.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type One Zinc a 28 b 18 lh 62 | |||||||||||||||||||||||
| CC0440.M0518 | Two Polyamide | 28 | 18 | 18 | |||||||||||||||||||
£ 2.51 per unit (click for quantity discounts) Ready to despatch 44 Need more? Please call us.
Type Two Polyamide a 28 b 18 lh 18 | |||||||||||||||||||||||
| CC0440.M0536 | Two Polyamide | 28 | 18 | 36 | |||||||||||||||||||
£ 3.17 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Type Two Polyamide a 28 b 18 lh 36 | |||||||||||||||||||||||
Technical & Application
Material
Type one: Body: die cast zinc, black powder coated.
Handle: polyamide, black.
Type two: Body & handle: polyamide, black.
Technical Notes
Order cam separately.
Cams: see suitable cam CC0020, and CC0040. Select "without projection" cam type.
Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - CC0340, CC0350, CC0355.
Tips
Finger knob actuates lock, and also acts as a handle.
Important Notes
Sold subject to pack quantity.
