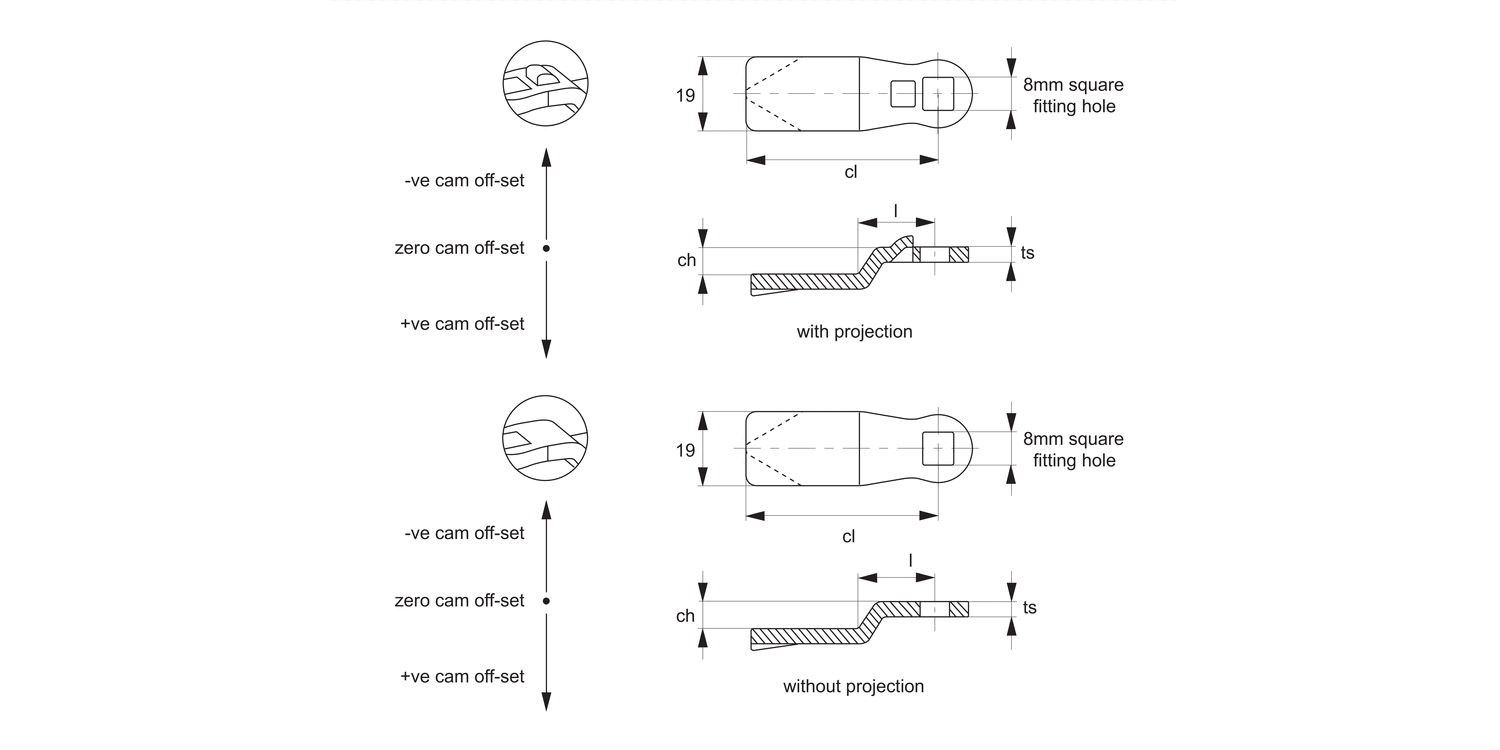

CC0020 Single Point Cams - Flexi-System
for cam latches and locks - steel - 8 x 8 Sq., material: Steel
Order No.
CC0020.M6404
Type
W/o Projection
ch
-4
cl
45
ts
4
Where
lh = 18
lh = 18
14.0
Where
lh = 18,5
lh = 18,5
14.5
Where
lh = 20
lh = 20
16.0
Where
lh = 24
lh = 24
20
Where
lh = 30
lh = 30
26
Where
lh = 40
lh = 40
36
Where
lh = 50
lh = 50
46
Where
lh = 60
lh = 60
56
£ 0.65 per unit (click for quantity discounts)
Ready to despatch 117
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 0.65 | 0% |
| 20-49 | £ 0.59 | 10% |
| 50-99 | £ 0.55 | 15% |
| 100-499 | £ 0.49 | 25% |
| 500+ | £ 0.42 | 35% |
Technical & Application
Material
Steel, zinc plated.
Technical Notes
Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

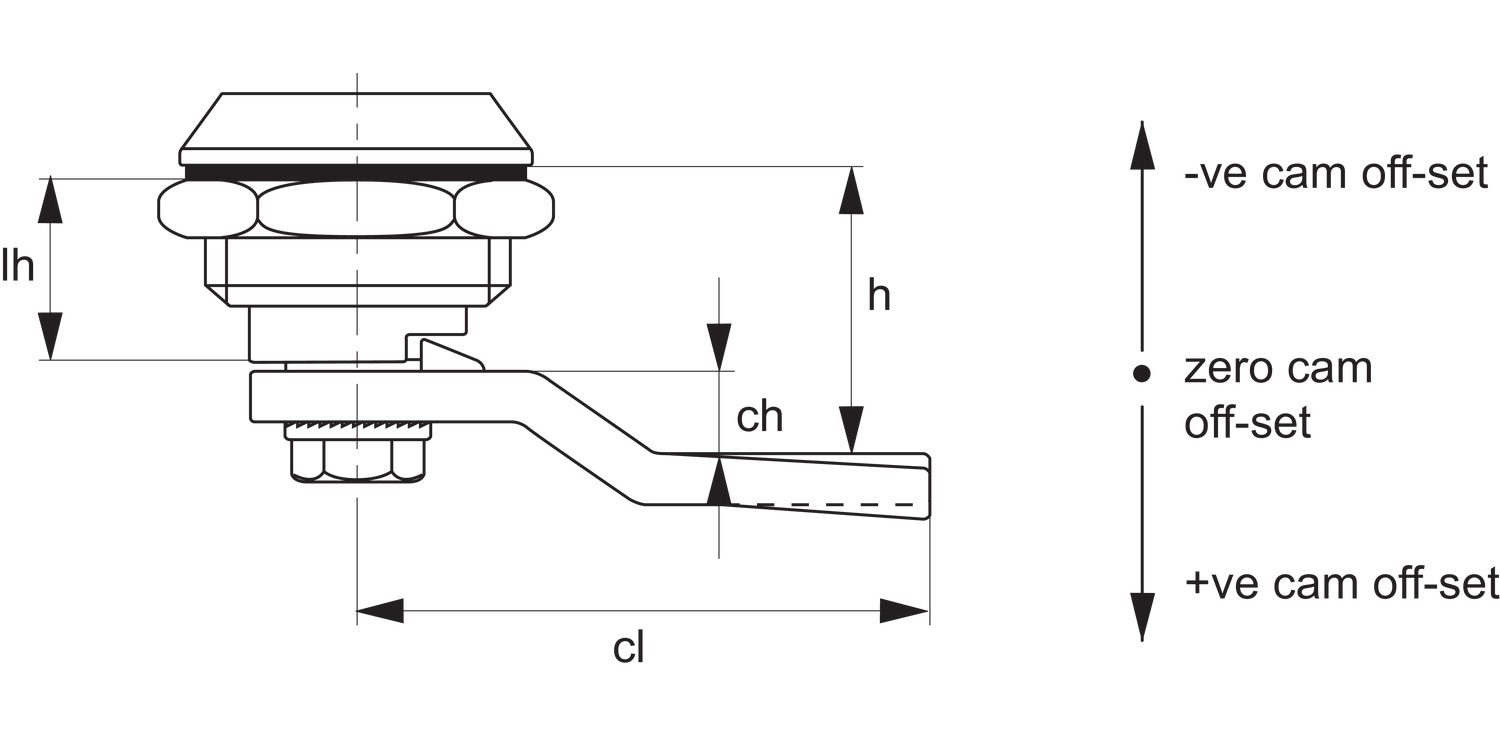

Refer to installation drawing below.
Important Notes
Suitable for Flexi-System latches. "With projection" type ensures correct location and prevents cam rotating over 45°. See cam selection chart for specific latch/lock suitability.
Sold subject to pack quantity.
