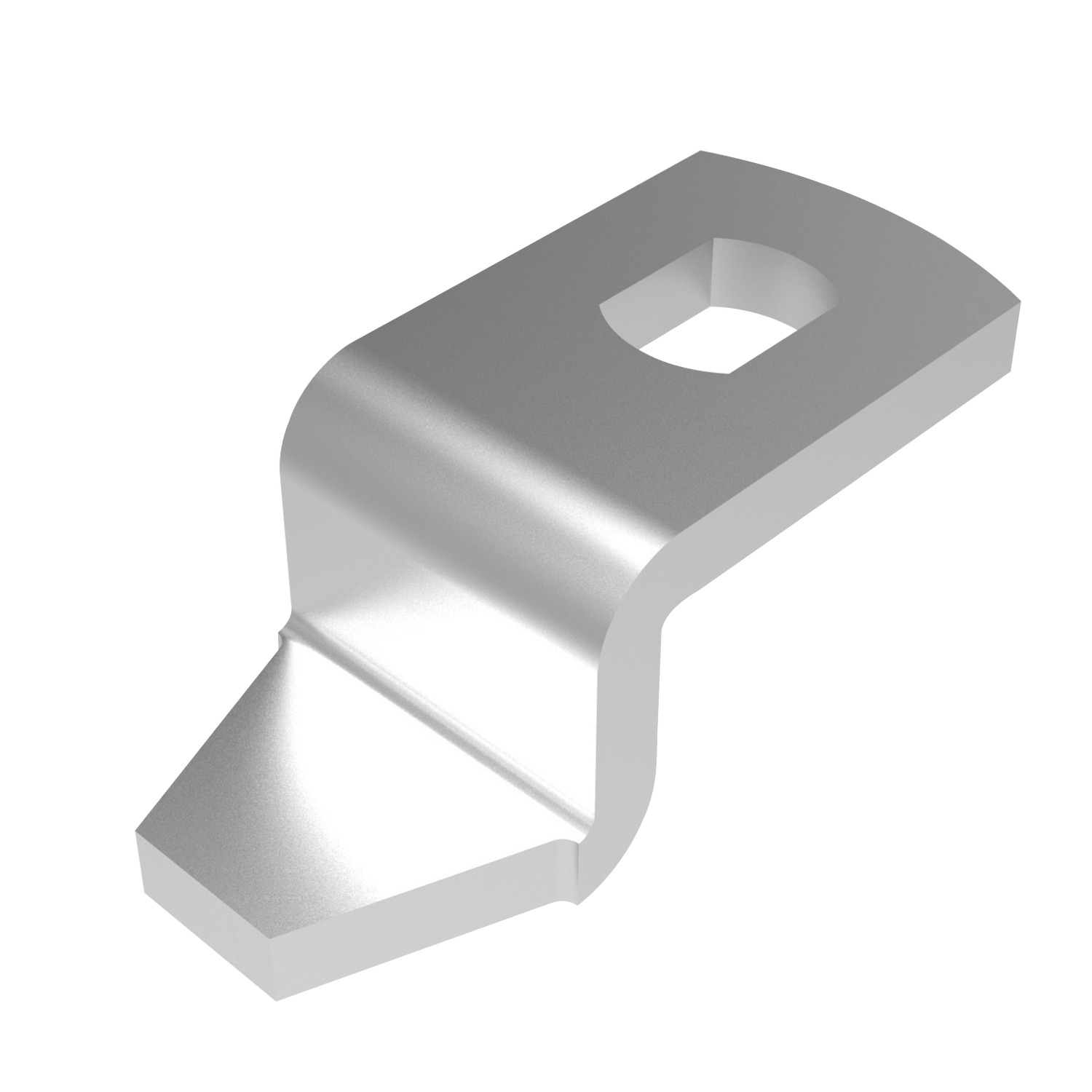

CC0030 Single Point Cams - Steel

Name: CC0030.M0327
Brand: WC
SKU: CC0030.M0327
Price: 1.02 EUR
Availability: InStock

for adjustable grip compression cam latches, material: Steel

Article properties

Order No.

CC0030.M0327

Where lh = 32

See full product selection

£ 1.02 per unit (click for quantity discounts)

Ready to despatch 13
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 1.02	0%
50-99	£ 0.92	10%
100-199	£ 0.82	20%
200-499	£ 0.77	25%
500-999	£ 0.71	30%
1000+	£ 0.61	40%

Download product datasheet

Technical & Application

Material

Steel, zinc plated.

Technical Notes

Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

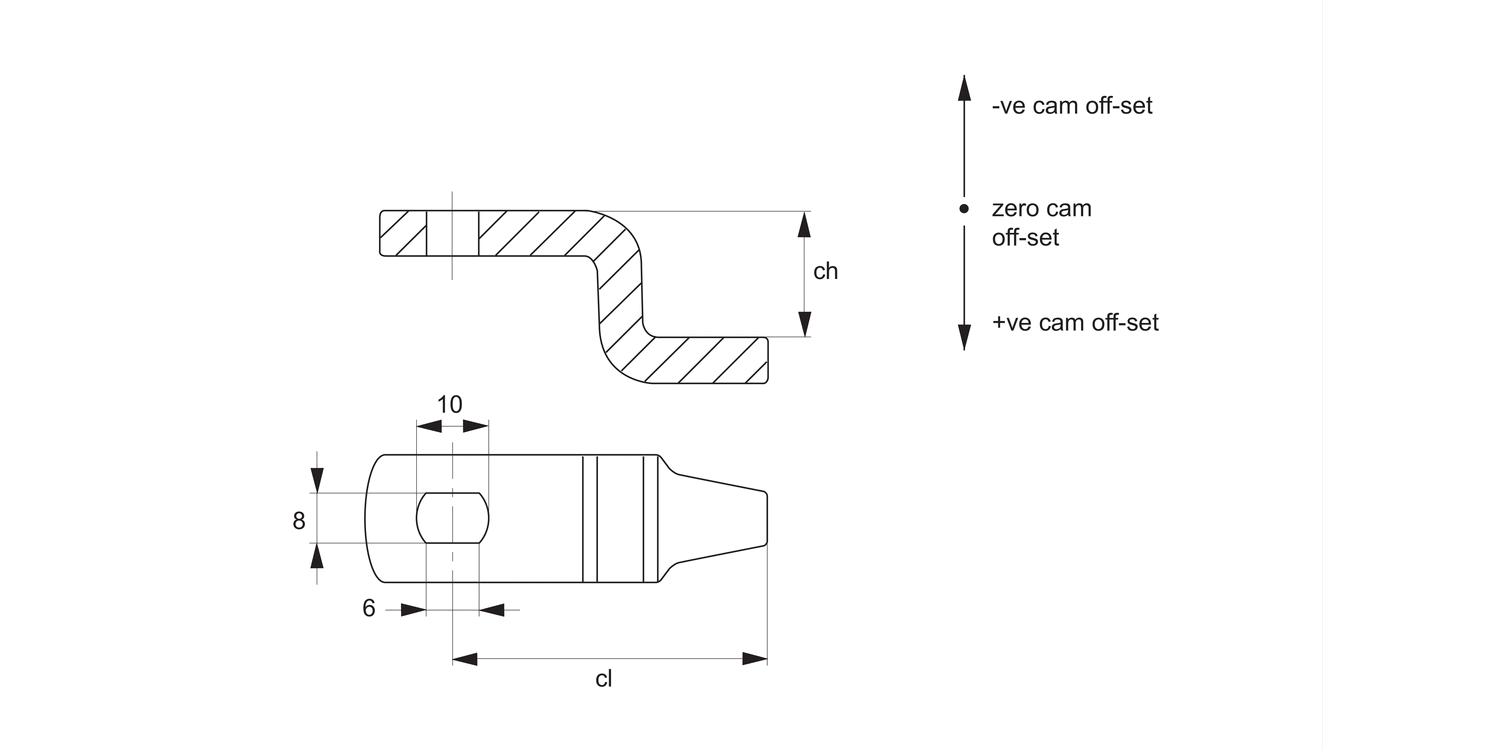

Refer to installation drawing below.

Important Notes

Suitable for adjustable grip compression cam latches CC0802, CC0810, , .
See cam selection chart for specific latch/lock suitability.
Installation hole is rectangular 6mmx4mm.
Please note due to design of the single point cam, it is not possible to use +ve offset cam in reverse/upside down as it results in a clash with the body of the cam latch- making it inoperable.
