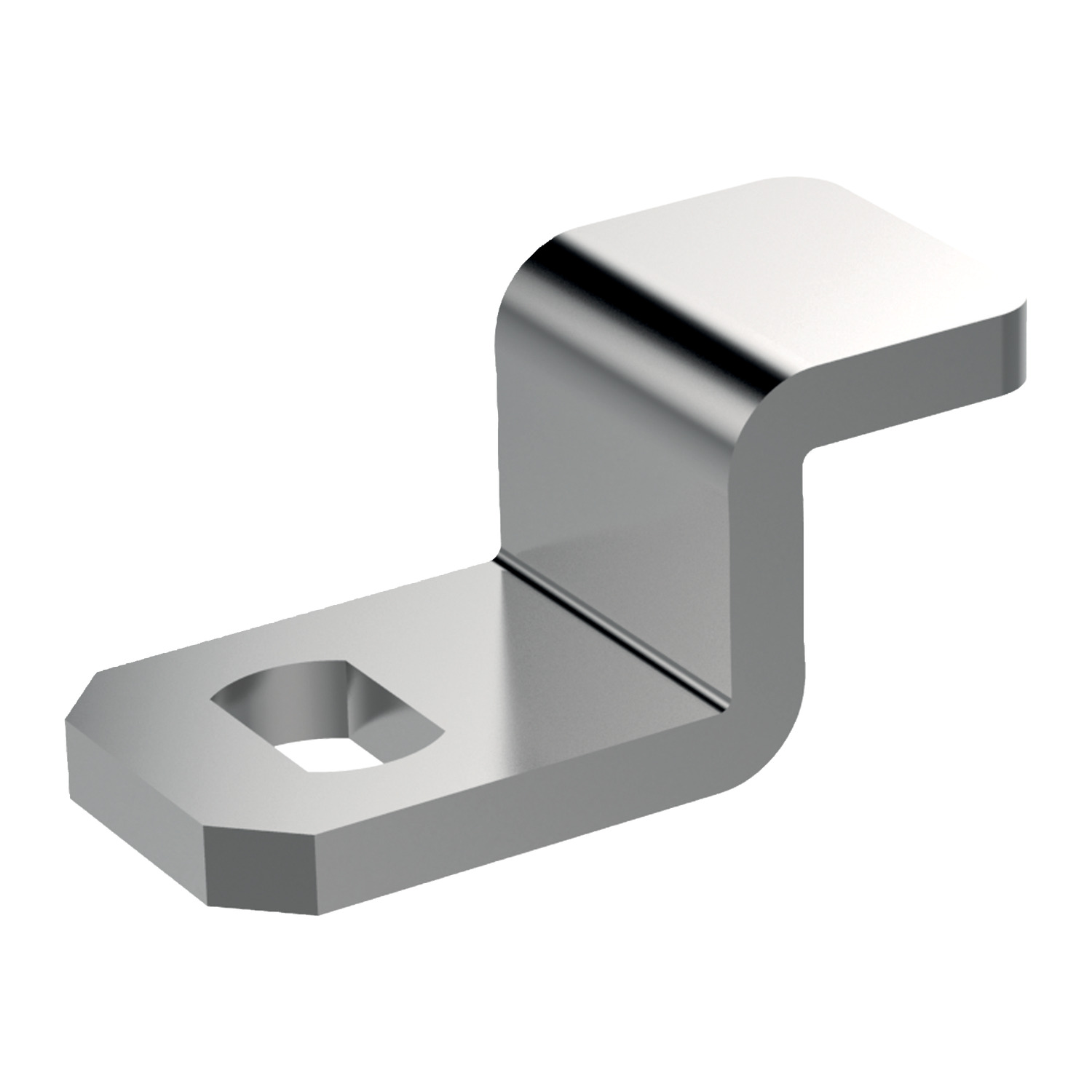

CC0034 Single Point Cams - Steel

Name: CC0034.M0320
Brand: WC
SKU: CC0034.M0320
Price: 0.65 EUR
Availability: InStock

for adjustable grip mini compression cam latches - and, material: Steel

Article properties

Order No.

CC0034.M0320

Type

+ve offset

2.8

Where lh = 22,5 min. h =

42.5

See full product selection

£ 0.65 per unit (click for quantity discounts)

Ready to despatch 29
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-49	£ 0.65	0%
50-99	£ 0.59	10%
100-199	£ 0.52	20%
200-499	£ 0.49	25%
500-999	£ 0.46	30%
1000+	£ 0.39	40%

Download product datasheet

Technical & Application

Material

Steel, zinc plated.

Technical Notes

Use formula to calculate ch (required cam off-set), and select from product table below;
ch =h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

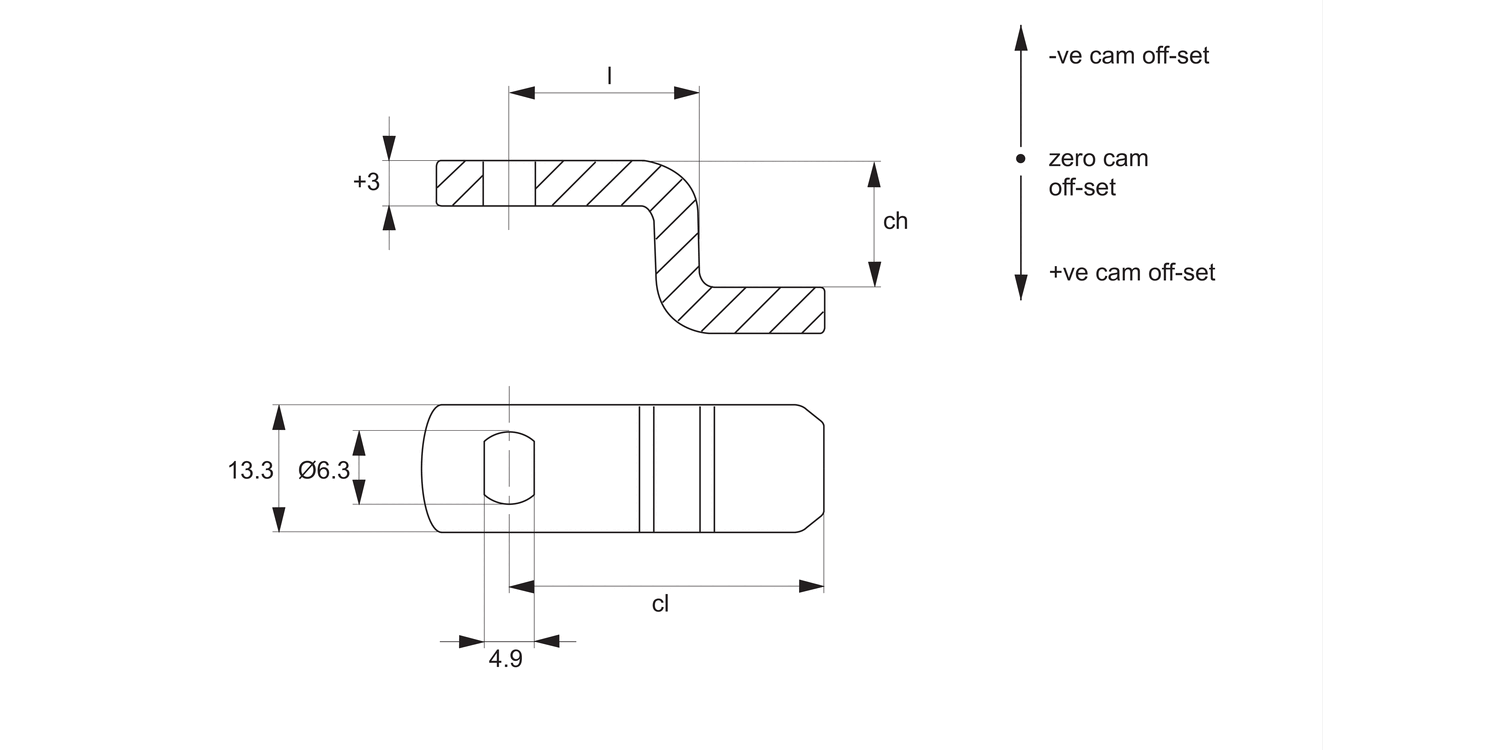

Refer to installation drawing above.

Important Notes

Suitable for adjustable grip mini compression cam latches A1660 and A1666. See cam selection chart for specific latch/lock suitability.
Sold subject to pack quantity.
Installation hole is rectangular 6mmx4mm.
Please note due to design of the single point cam, it is not possible to use +ve offset cam in reverse/upside down as it results in a clash with the body of the cam latch- making it inoperable.
