Keys - Flexi-Sys
for cam latches & locks

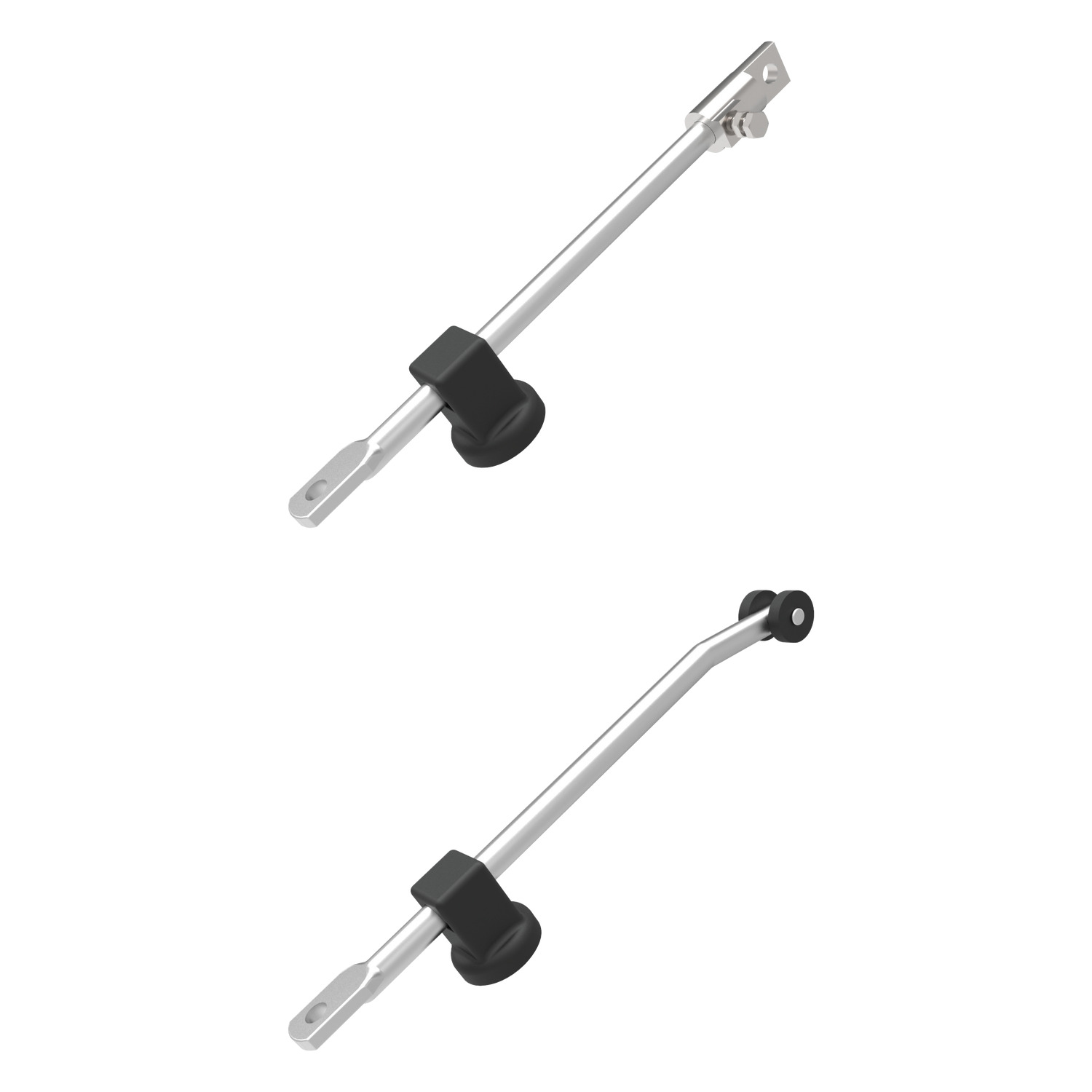

CC0340 Multi-Point Latching Set
round rod - for cam latches and swing handles, material: Steel
Order No.
CC0340.M0882
Type
Guide Three
Length
-
Length l
-
h1
18
h2
-
Weld screw
-
£ 0.48 per unit (click for quantity discounts)
Ready to despatch 985
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 0.48 | 0% |
| 20-49 | £ 0.43 | 10% |
| 50-99 | £ 0.41 | 15% |
| 100-499 | £ 0.36 | 25% |
| 500+ | £ 0.31 | 35% |
Technical & Application
Material
Rod: steel, zinc plated. With Nylon or PA6 rollers.
Rod Guides One to Four: polyamide, PA6.
Rod Adaptor and Roller Adaptor: die cast zinc, zinc plated.
Technical Notes
For use with cam latches & locks, making a full 3-point latching system.
Distance between base of rod and inside of door depends upon height of rod guide selected, see dimension h1.
Rod guides: fixed via counter sunk screw or weld-on stud.
Rod adaptor: fits to any length of rod. If rod of different length is required, simply cut oversized length with a saw.
Cams: see two point cams CC0040 to achieve 3-point locking.
Important Notes
Please order rods, rod guides and rod adaptors separately.
